The clamping fixture ALUMESS.junior
offers a simple and reasonable entry to the modular clamping technology for series measurements on tactile coordinate measuring machines (CMMs).
On the pallets equipped with clamping threads different supporting and positioning elements as well as necessary clamping elements can be easily and quickly mounted.
The mounting options of the components are logical and user-friendly.
The clamping system is palletizable and compatible to ALUMESS.maxx.
In our ALUMES catalogue you’ll find detailed information of the clamping system and a wide range of suitable equipment.
Video-explanations for ALUMESS.junior starter kits
Starter kit ALUMESS.junior A
Starter kit ALUMESS.junior A with workpiece
Explanation of the ALUMESS.junior fixturing system:

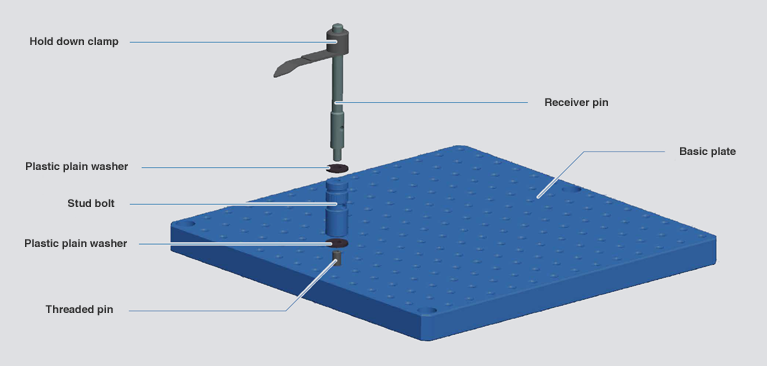

Mounting example ALUMESS.junior: Pallet, assembled

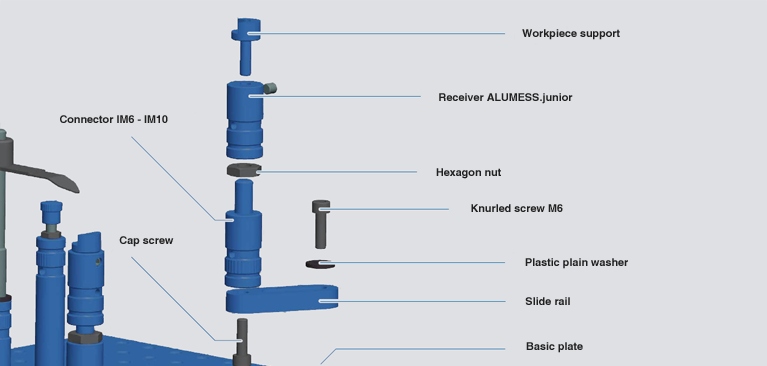

Mounting example ALUMESS.junior: Pallet, assembled
Getting started with ALUMESS.junior we offer the following Starter Kits:
| Type | Scope of delivery | Order no. | |
|---|---|---|---|

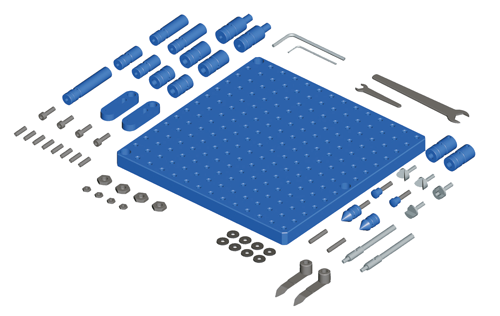

Starter kit ALUMESS.junior A (66 pieces) | 1 x Pallet .junior 280 × 280 2 x Connector Ø20 AM10-IM6 2 x Stud bolt Ø16 × 40 2 x Stud bolt Ø16 × 60 1 x Stud bolt Ø16 × 80 2 x Stud bolt Ø20 × 40 2 x Stud bolt Ø20 × 30 2 x Slide rail 2 x Receiver .junior 1 x Supporting pin X-stop .junior 2 x Center Ø16 × 33 1 x Supporting pin XY-stop .junior 2 x Supporting prism 90° .junior 2 x Hold down clamp | 2 x Receiver pin for hold down clamp 8 x Threaded pin M6 × 20 DIN 913 4 x Threaded pin M6 × 30 DIN 913 4 x Cap screw M6 × 20 8 x Plastic plain washer Ø16 × 6 × 2 2 x Supporting screw 4 x Hexagon nut M6 4 x Hexagon nut M10 2 x Parallel pin 6m6 × 32 DIN7 1 x Allen wrench SW3 short 1 x Allen wrench SW5 short 1 x Open-ended wrench SW10 1 x Open-ended wrench SW17 | B500100030 |

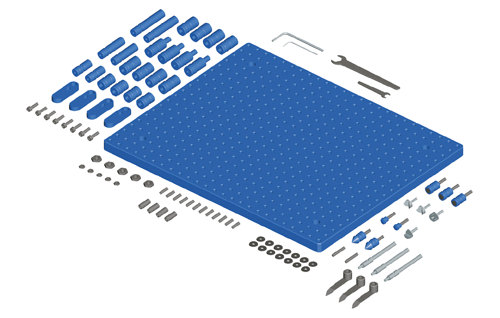

Starter kit ALUMESS.junior B (102 pieces) | 1 x Pallet .junior 500 × 400 4 x Connector Ø20 AM10-IM6 2 x Stud bolt Ø16 × 40 2 x Stud bolt Ø16 × 60 2 x Stud bolt Ø16 × 80 4 x Stud bolt Ø20 × 40 4 x Stud bolt Ø20 × 30 4 x Slide rail 4 x Receiver .junior 1 x Supporting pin X-stop .junior 2 x Center Ø16 × 33 1 x Supporting pin XY-stop .junior 2 x Supporting prism 90° .junior 3 x Magnetic support Ø16 3 x Hold down clamp | 3 x Receiver pin for hold down clamp 12 x Threaded pin M6 × 20 DIN 913 4 x Threaded pin M6 × 30 DIN 913 4 x Threaded pin M10 × 25 DIN 913 8 x Cap screw M6 × 20 2 x Supporting screw 5 x Hexagon nut M6 5 x Hexagon nut M10 14 x Plastic plain washer Ø16 × 6 × 2 2 x Parallel pin 6m6 × 32 DIN7 1 x Allen wrench SW3 short 1 x Allen wrench SW5 short 1 x Open-ended wrench SW10 1 x Open-ended wrench SW17 | B500100031 |
