ALUMESS – Since 1993 the fixturing system of the supplier industry

The modular ALUMESS fixturing systems enable a precisely positioned and reproducible setup of clamping fixtures for different workpieces of all industries.

They are designed for flexible use at the measuring station, on coordinate measuring machines (CMMs) and optical measuring systems. Special fixturing system for laser machining – laser welding, laser engraving or laser marking.

>> Modular concept
Easy, rapid and economical

>> Flexible
Maximum flexibility and part-specific or customized clamping solutions in the measureing room.

>> Solid
The components of the different systems can be fixed directly with each other, making up a robust and strong connection.
Thanks to the space-saving implementation of all construction elements, an optimal accessibility to the point of measurement can be achieved.

ALUMESS.basic

Fixing and clamping of workpieces within seconds due to the quick-change mechanism of ALUMESS.basic. The clamping system is suitable for tactile measurements at the measuring station and on coordinate measuring machines (CMMs). Workpieces are fixed true-to-contour.

Compatible to:

–  ALUMESS.maxx

ALUMESS.junior

ALUMESS.junior, the low-priced starter clamping system for series measurements on tactile coordinate measuring machines (CMMs). The mounting of the components is user-friendly and enables a quick clamping of the workpieces to be processed.  ALUMESS.junior is suitable for pallet automation.

Compatible to:

–  ALUMESS.maxx

ALUMESS.maxx

Solid clamping system with a wide range of components. Suitable for series measurements on tactile coordinate measuring machines (CMMs).
ALUMESS.maxx can also be used for the production of samples or prototypes, for laser inscription and laser processing or as a mounting device.

Compatible to:

– ALUMESS.basic
 – ALUMESS.junior
– ALUMESS.optic

ALUMESS.easyloc

Modular combinable clamping system for optical measuring devices and optical CMMs. ALUMESS.easyloc can be easily installed due to the magnetically interlocking quick-swap pallets. Fixture solutions can be quickly changed, the measuring process can be improved and the production quantity per shift can be increased.

ALUMESS.easyloc – Metrology is suitable for individual and series measurement – optical and tactile. Existing fixtures can be adapted effortlessly. ALUMESS.easyloc – Laser is suitable for laser marking, laser engraving und laser welding.

Elements can be used of:

–  ALUMESS.junior
– ALUMESS.maxx

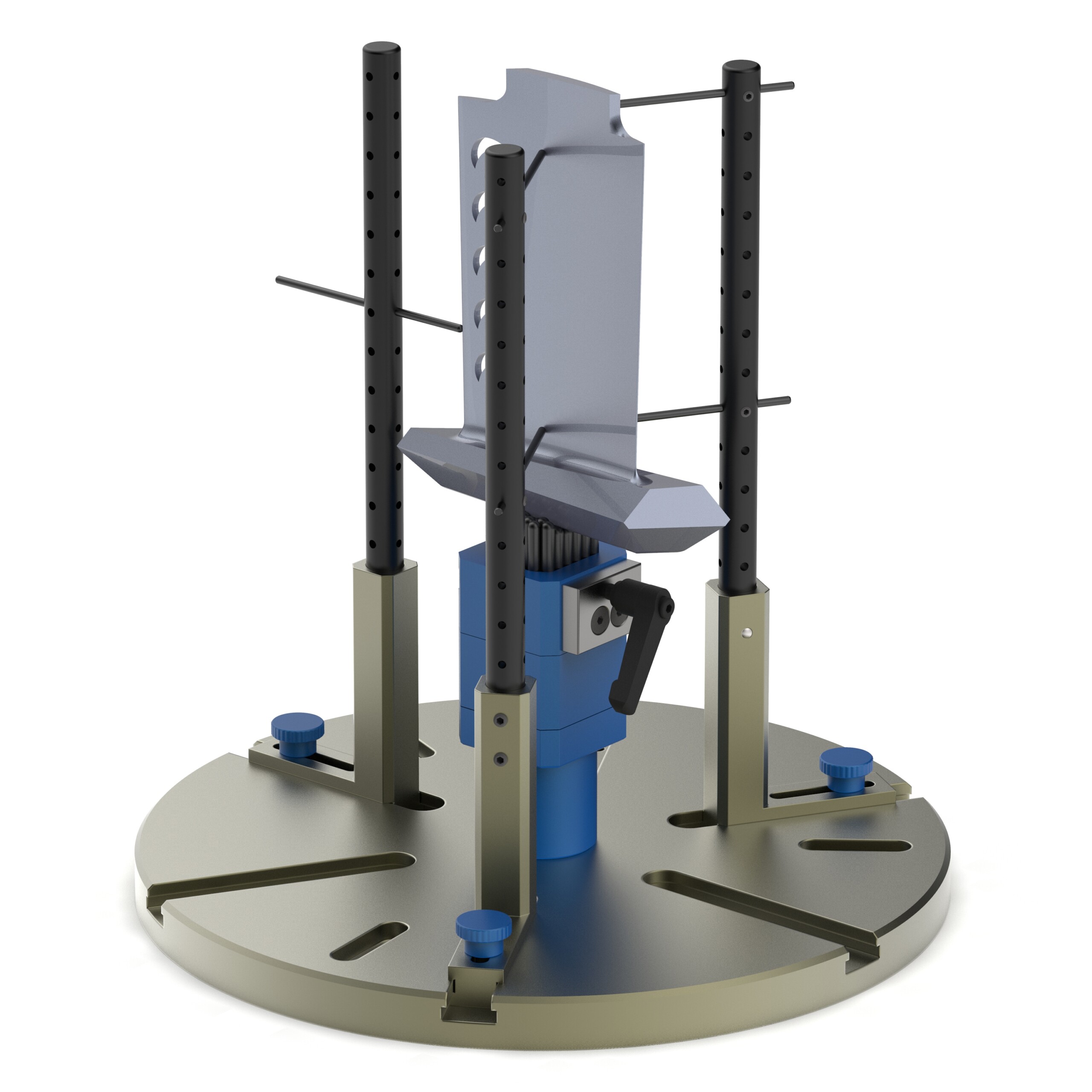

ALUMESS.xray

ALUMESS.xray the clamping system for 3D X-ray measuring technology (CT). Easy mounting, flexible combinations possible, X-ray transparent. Suitable for individual and series measurements.

Elements can be used of:

–  ALUMESS.basic
– ALUMESS.junior
– ALUMESS.easyloc

ALUMESS.optic

This flexible clamping system is designed for single-part and series measurements on optical coordinate measuring machines (CMMs).
ALUMESS.optic can be used on multi-sensor machines for tactile measurement and in direct and transmitted light.

Compatible to:

– ALUMESS.maxx
